Model: DUC254Z
Specifications
- Guide Bar Length 250 mm (10″)
- Chain Pitch 3/8″
- Chain Gauge 1.1 mm (0.043″)
- Chain Speed 0 – 24 m/s (0 – 1,440 m/min) (0 – 4,720 FPM)
- Chain Oil Tank Volume 140 mL
- Max Output 570 W
- Cutting Length 240 mm (N/A”)
- Dimensions (L x W x H) Without Guide Bar: 258 x 184 x 191 mm (10-1/8″ x 7-1/4″ x 7-1/2″)
- With 25 cm (10″) 90PX Sprocket Nose Bar: 482 x 184 x 191 mm (19″ x 7-1/4″ x 7-1/2″)
- With 25 cm (10″) 25AP Sprocket Nose Bar: 493 x 184 x 191 mm (19-3/8″ x 7-1/4″ x 7-1/2″)
- Net Weight 2.8 kg

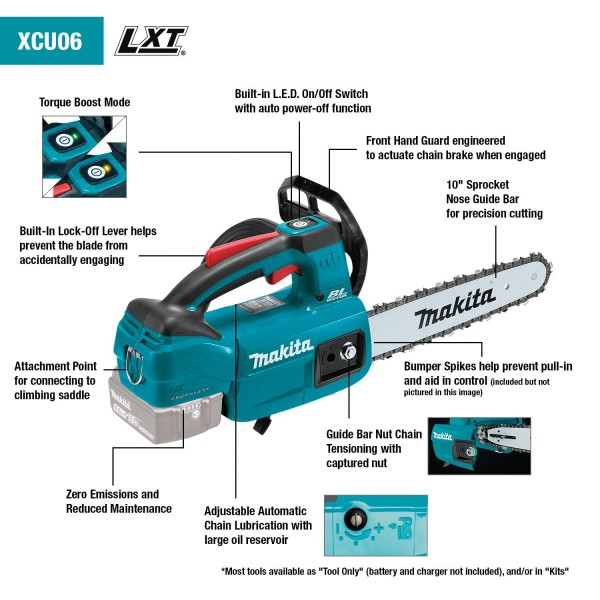

Features
- Compact top handle design built for the professional tree care industry
- Makita-built Outer Rotor BL™ Brushless Motor direct-drive system provides high power efficiency
- Variable speed trigger and high chain speed (0-4,720 FPM) for improved cutting performance
- Torque boost mode for cutting dense material
- Captured bar nut and lateral chain tensioning for convenient operation and maintenance
- Adjustable automatic chain lubrication with large oil reservoir
- Large oil filling port with view window allows operator to easily add and check bar oil level
- Weighs only 7.2 lbs. with battery for operator comfort (battery not included)
- Built-in L.E.D. on/off switch with auto power-off function; automatically shuts the saw off after 60 seconds for extended battery life
- Built-in lock-off lever helps prevent the chain from accidentally engaging
- Front hand guard engineered to actuate chain brake when engaged
- Electric brake for maximum productivity
- Low noise level and zero emissions for operator comfort
- Rubberized soft grip top handle is engineered for the user to more easily apply even cutting pressure

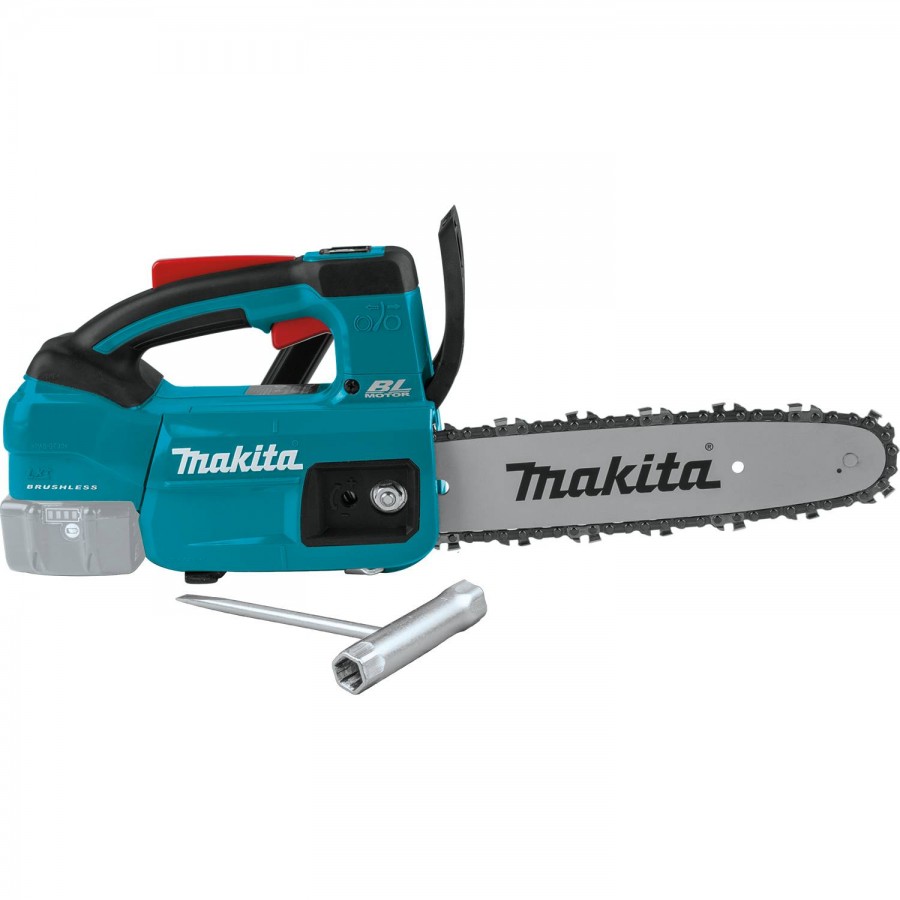

Included
- Saw Chain
- Guide Bar
- Guide Bar Cover
